ASUS TUF GAMING B760-PLUS WIFI D4 Intel B760 LGA 1700 ATX

90MB1DF0-M1EAY0

(ASUS TUF GAMING B760-PLUS WIFI D4 - Motherboard - ATX - LGA1700 Socket - B760 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics [CPU required] - HD Audio [8-channel])

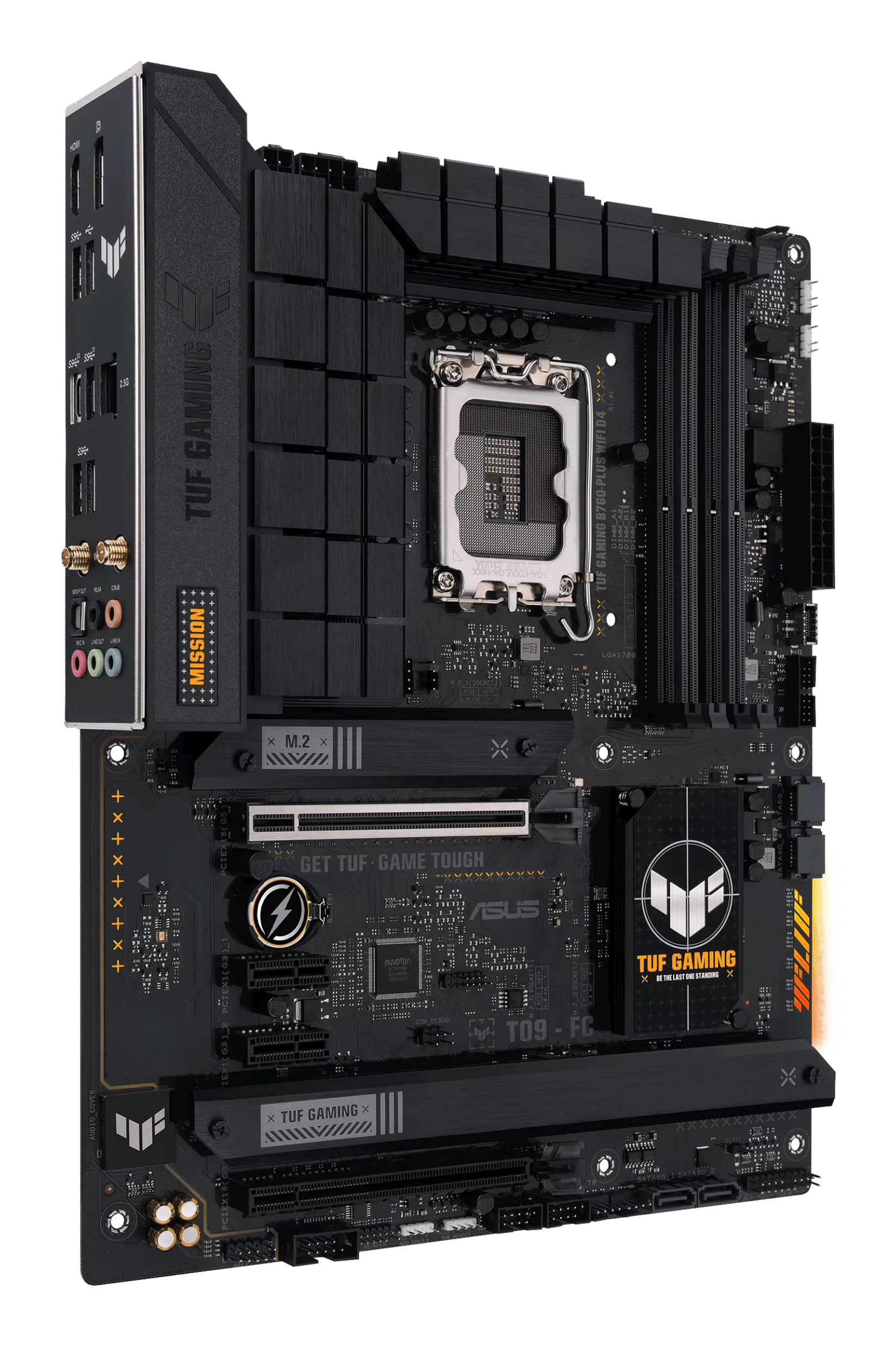

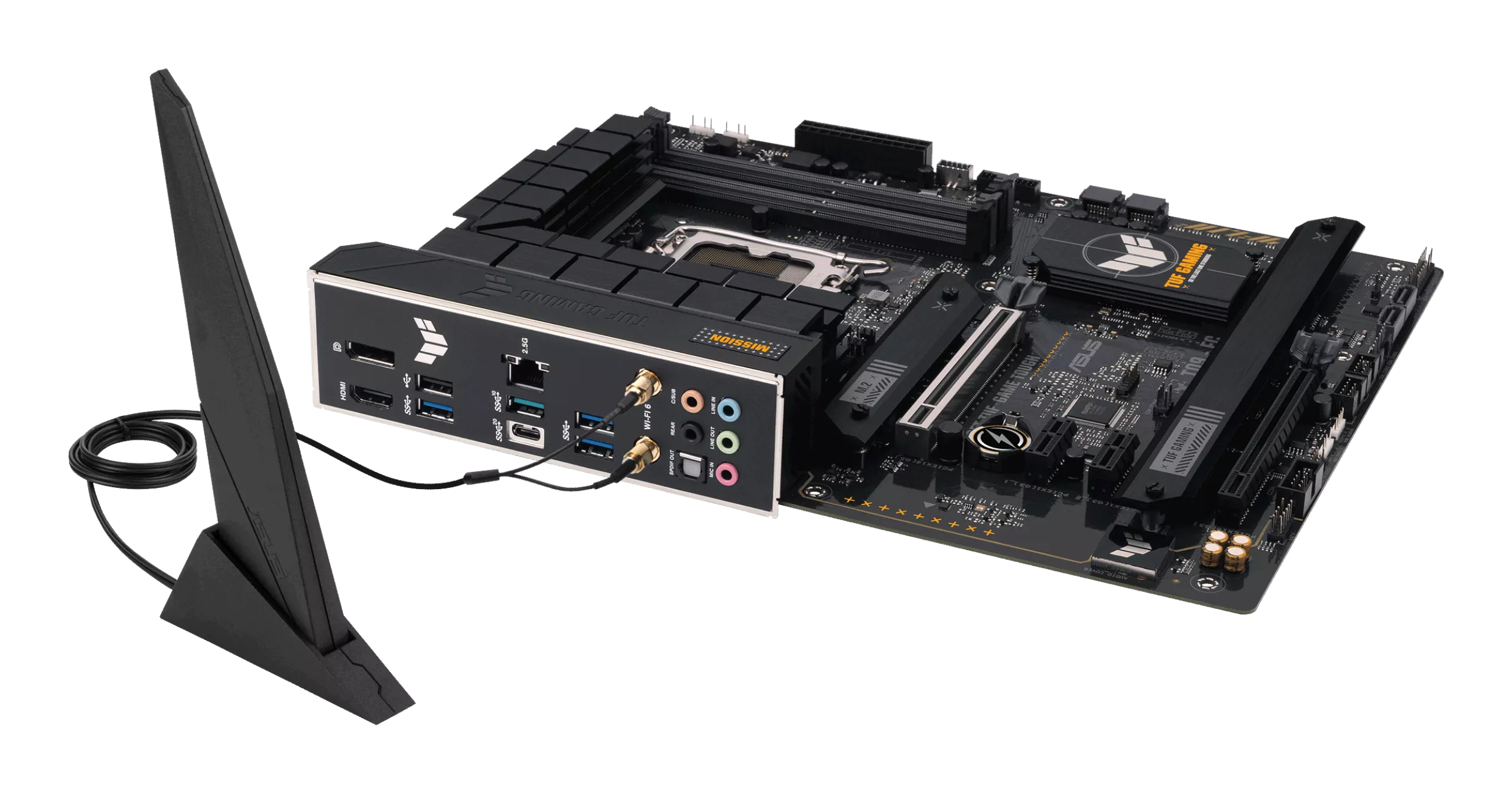

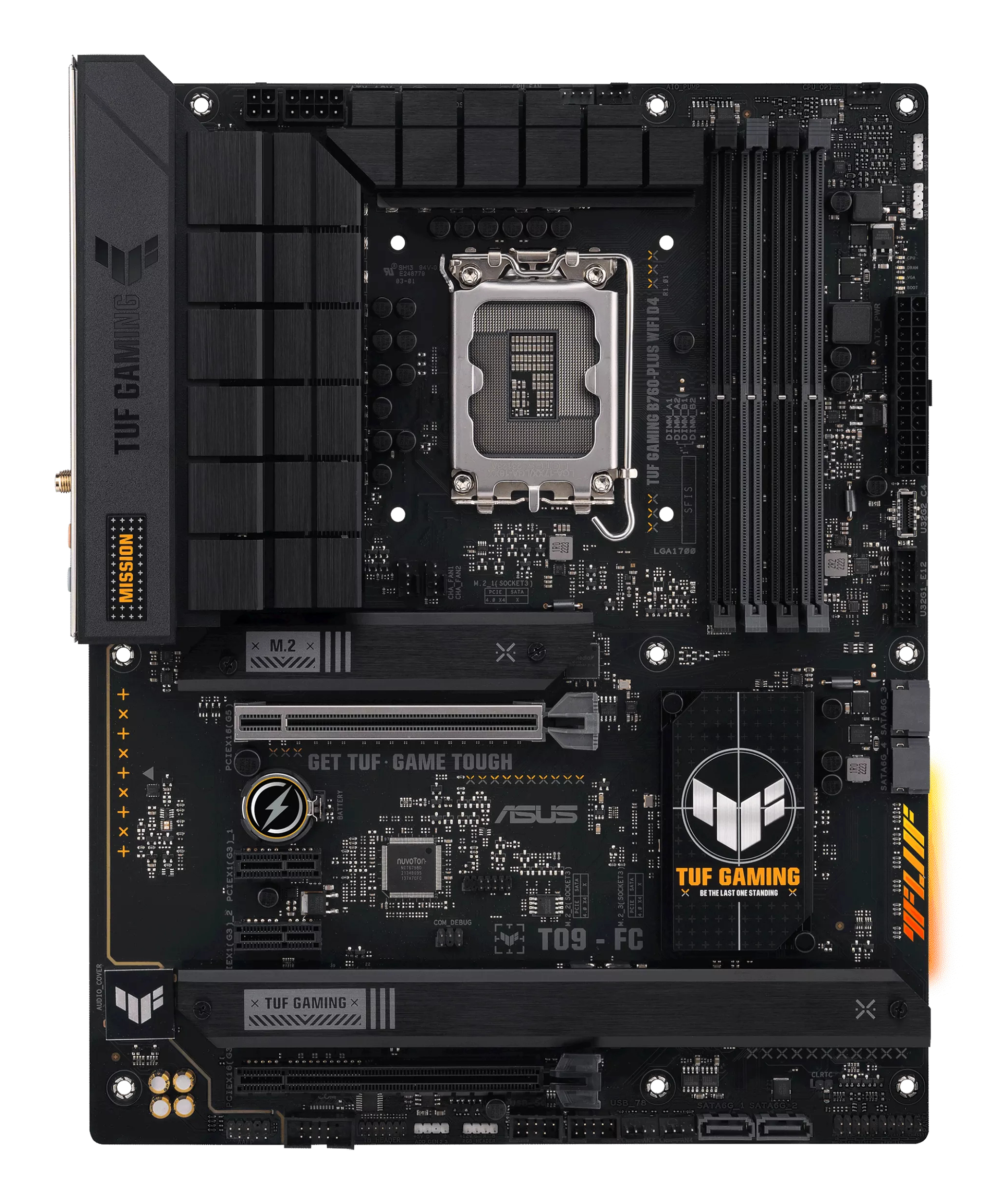

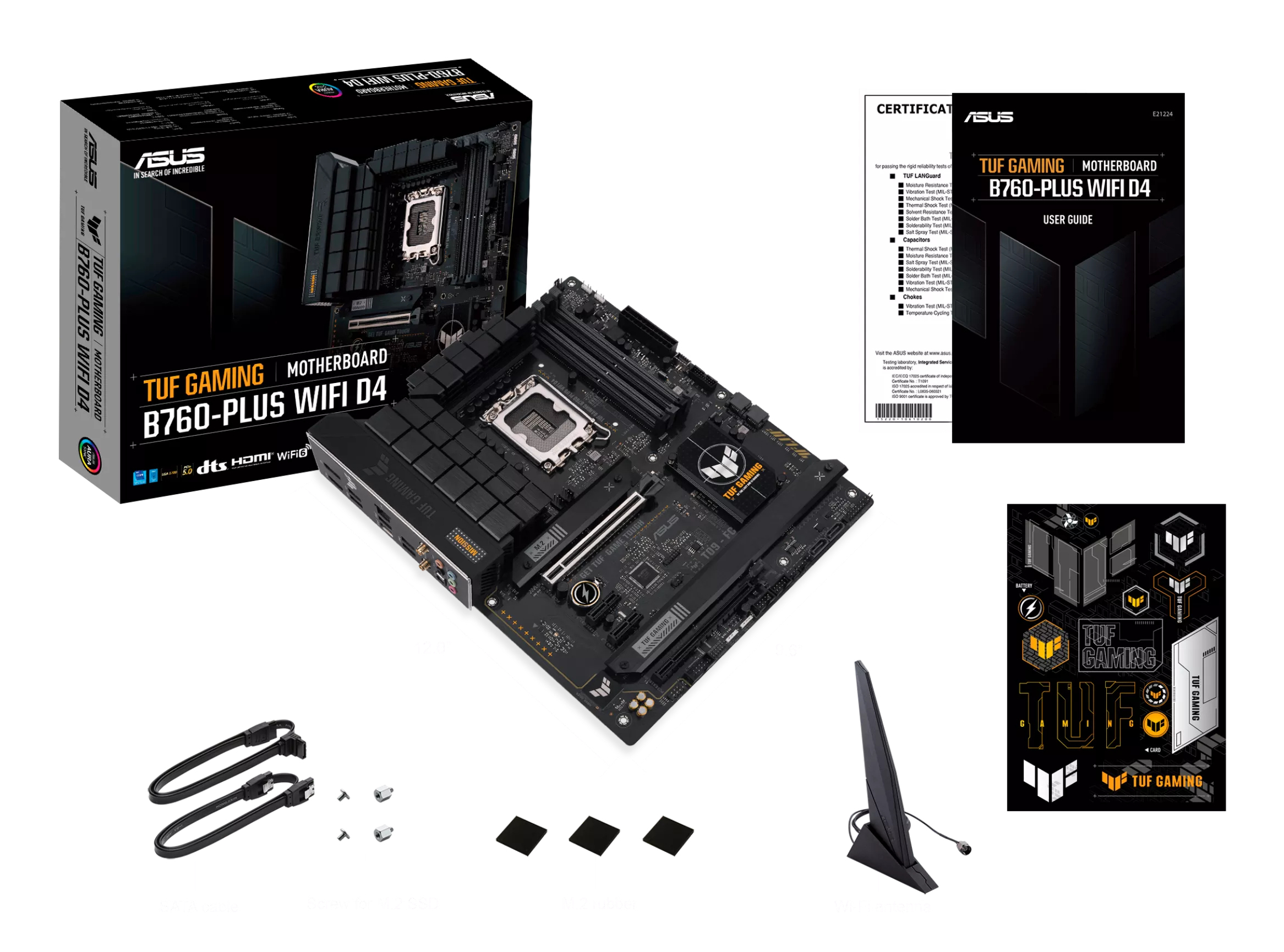

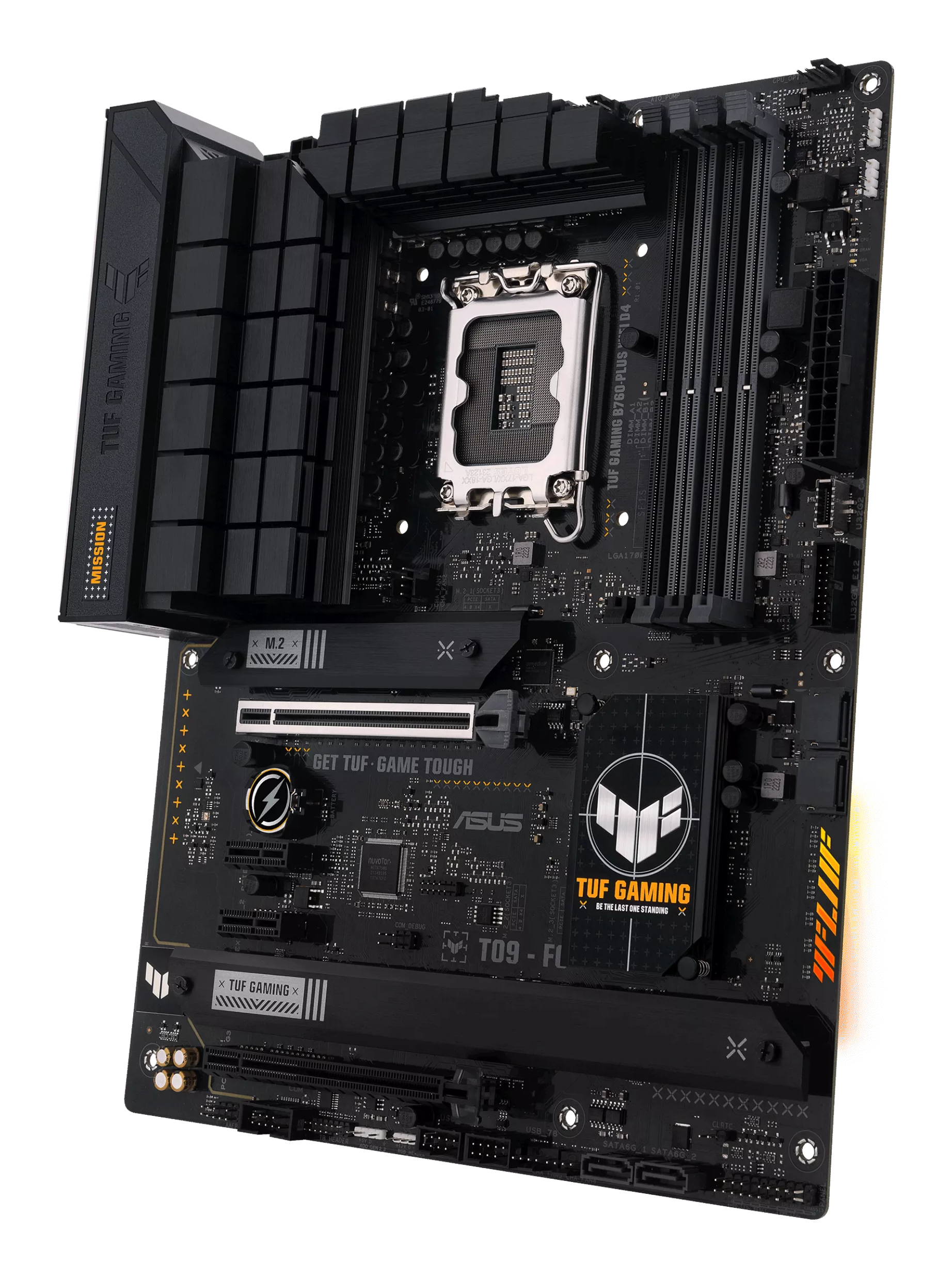

Product Image
Image accuracy is not guaranteed. Please do not rely on the image for your purchase.

View Product Demo

£155.60 | £186.72 inc.VAT

Overseas Customers with EU-VAT number do not pay VAT. - Verify it here

  • Quick Code: B47912666
  • MPN: 90MB1DF0-M1EAY0
  • Manufacturer: ASUS
  • EAN code:
icon_cash_tag_large.jpg (130×105) Get £1.12 Cash Back if paying by Debit Card or Bank Transfer!

Learn more

Are you a System Builder? Assemble your PC and verify component compatability with our online PC Designer Tool!

Request More Info
Notify me when price drops
NOTE: The information below is provided for your convenience only and we cannot guarantee its accuracy. If necessary, please verify with us before purchasing.

Processor
Processor manufacturer Intel
Processor socket LGA 1700
Compatible processor series Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Maximum number of SMP processors 1
Supported processor sockets LGA 1700
Memory
Supported memory types DDR4-SDRAM
Number of memory slots 4
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility Non-ECC
Supported memory clock speeds 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5066,5333 MHz
Maximum internal memory 128 GB
Unbuffered memory
Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, SATA III
Number of HDDs supported 4
Number of storage drives supported 7
RAID support
RAID levels 0, 1, 5, 10
Graphics
Parallel processing technology support Not supported
Internal I/O
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Number of SATA III connectors 4
Front panel audio connector
Front panel connector
ATX Power connector (24-pin)
CPU fan connector
Number of chassis fan connectors 4
Peripheral (Molex) power connectors (4-pin) 1
EPS power connector (8-pin)
Number of COM connectors 1
Thunderbolt headers 1
12V power connector
RGB LED pin header
Rear panel I/O ports
USB 2.0 ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 0
USB 3.2 Gen 2x2 Type-C ports quantity 1
Ethernet LAN (RJ-45) ports 1
VGA (D-Sub) ports quantity 0
HDMI ports quantity 1
HDMI version 2.1
DVI-D ports quantity 0
DisplayPorts quantity 1
DisplayPort version 1.4
Headphone outputs 1
Line-in
S/PDIF out port
WiFi-AP antenna jack 2
Network
Ethernet LAN
Ethernet interface type 2.5 Gigabit Ethernet
Wi-Fi
Top Wi-Fi standard Wi-Fi 6 (802.11ax)
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth
Bluetooth version 5.2
Features
Component for PC
Motherboard form factor ATX
Motherboard chipset family Intel
Motherboard chipset Intel B760
Audio output channels 7.1 channels
Cooling type Passive
Power source type ATX
Windows operating systems supported Windows 10, Windows 11
Expansion slots
PCI Express x1 (Gen 3.x) slots 2
PCI Express x16 (Gen 3.x) slots 1
PCI Express x16 (Gen 5.x) slots 1
Number of M.2 (M) slots 3
BIOS
BIOS type UEFI AMI
BIOS memory size 128 Mbit
Packaging data
Package width 331 mm
Package depth 76 mm
Package height 266 mm
Package weight 1.98 kg
Weight & dimensions
Width 305 mm
Depth 244 mm
