Components & Storage » System Components » Motherboards » Product

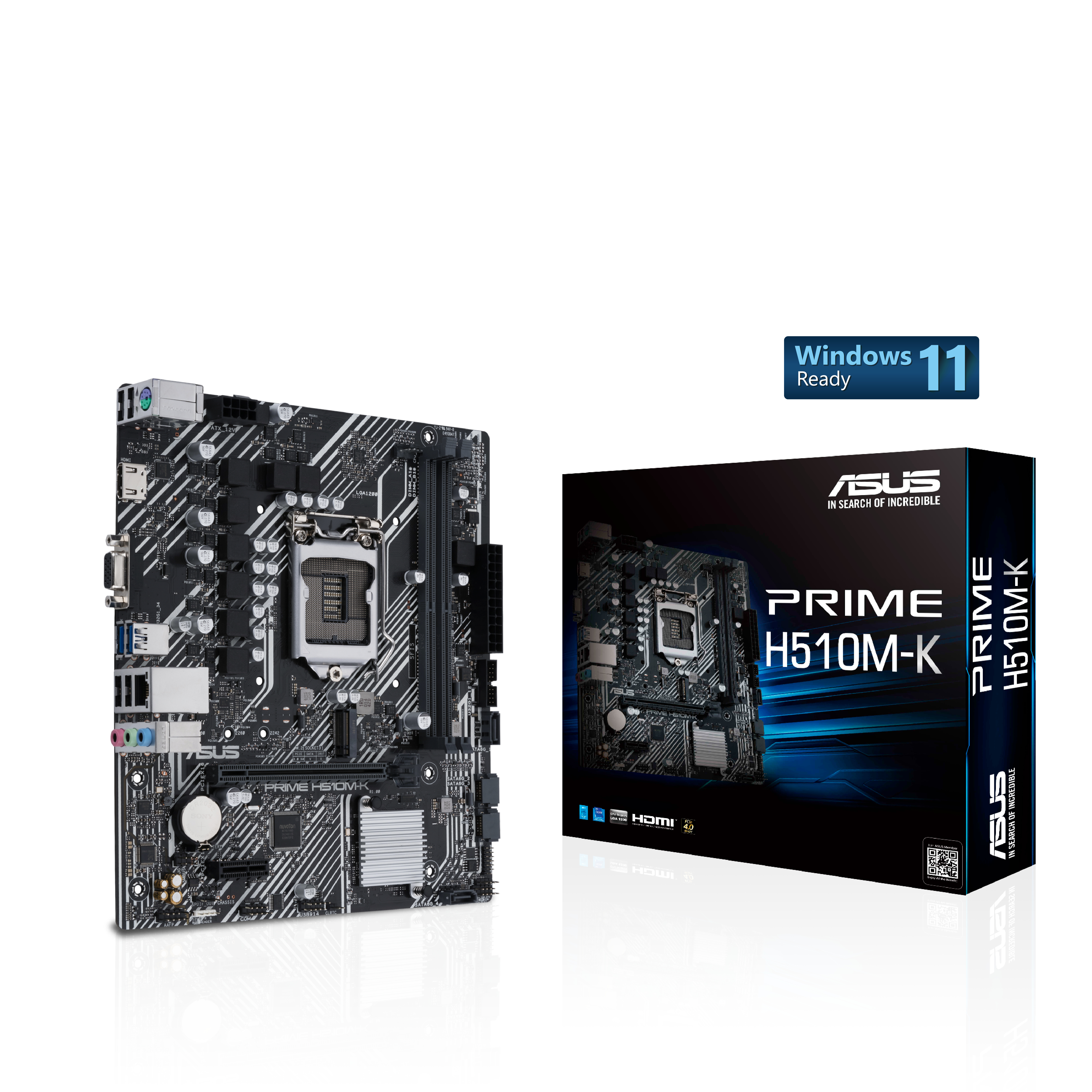

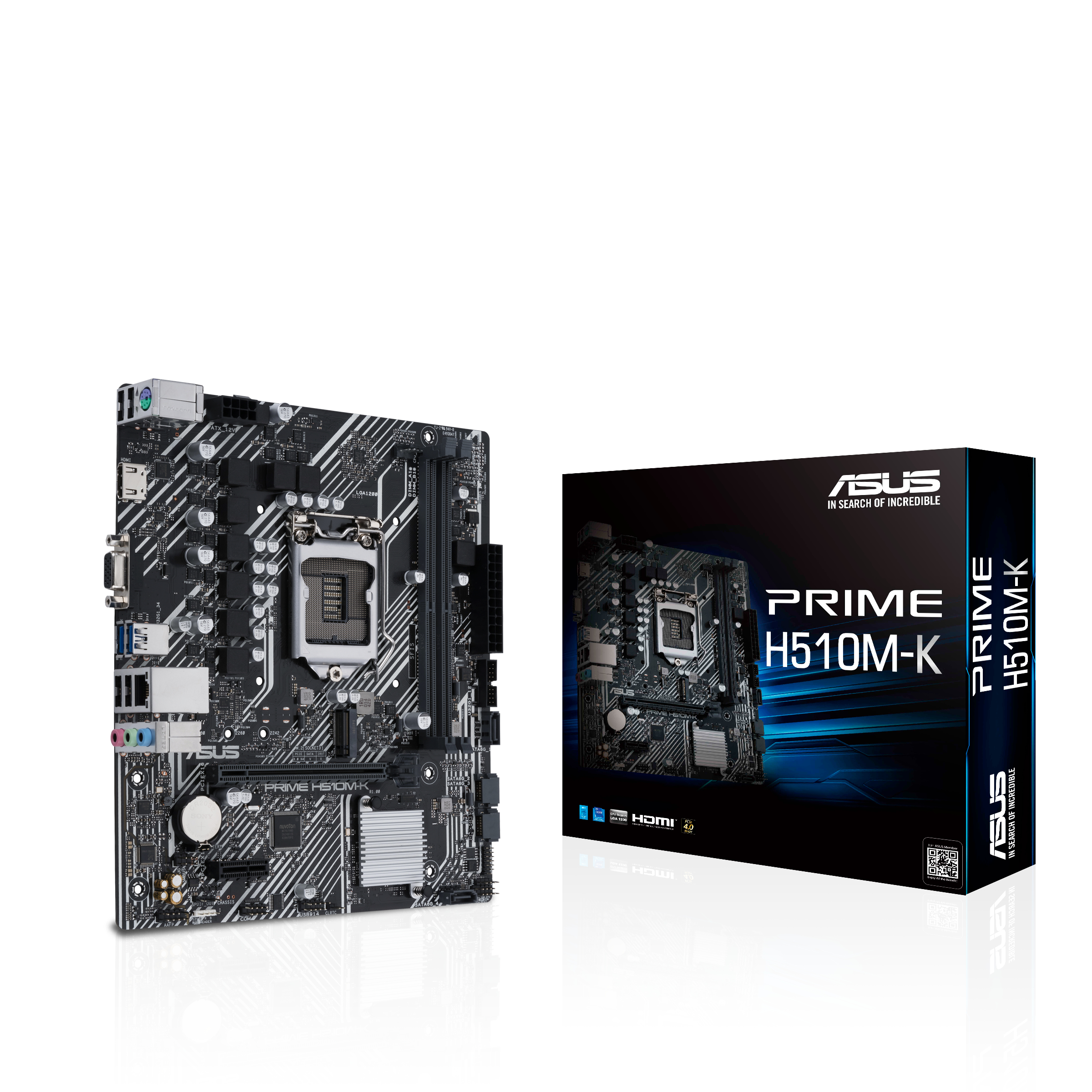

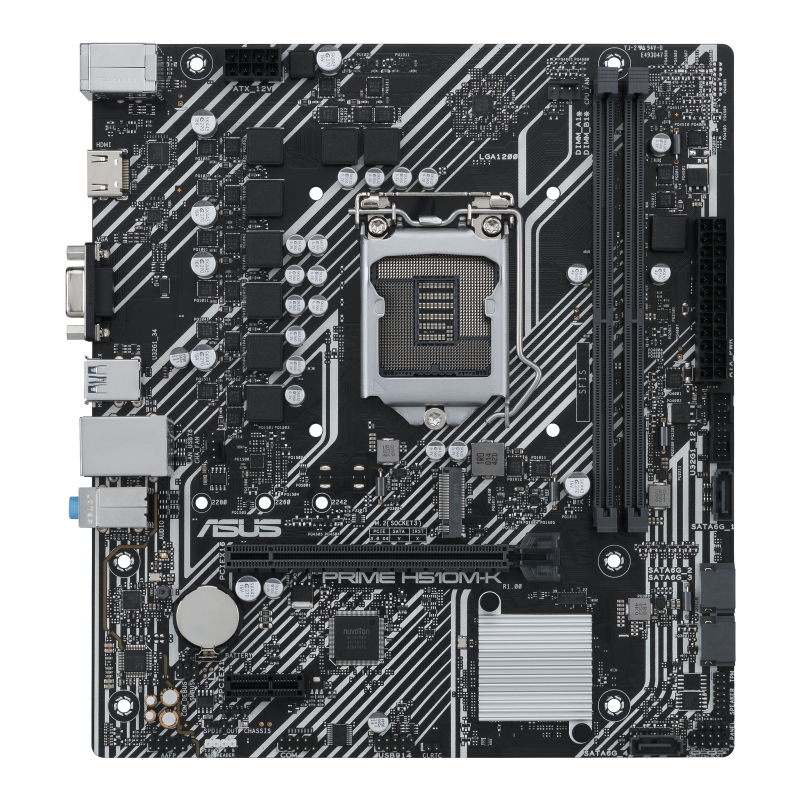

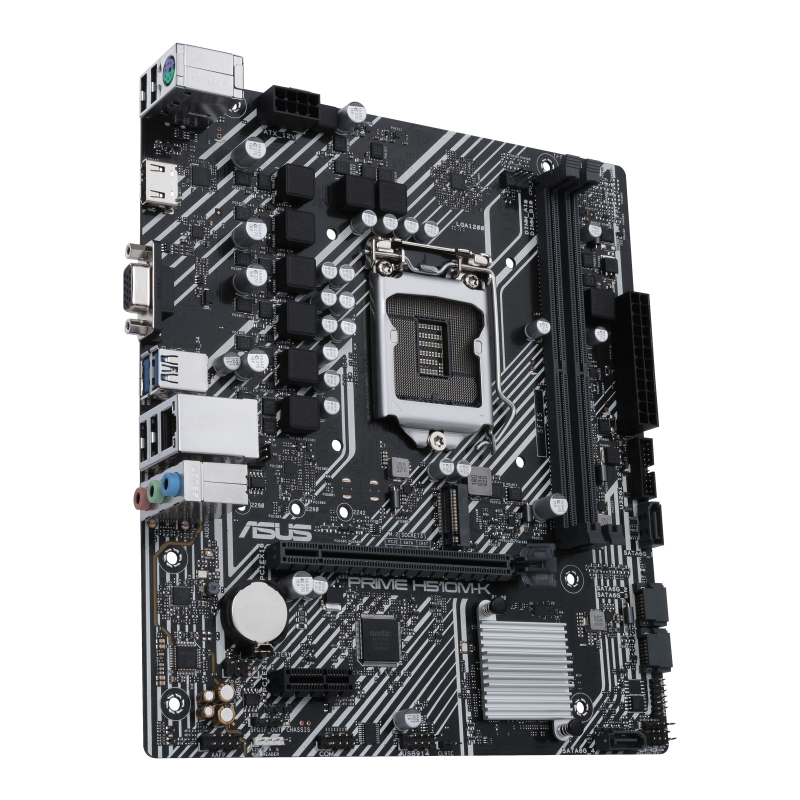

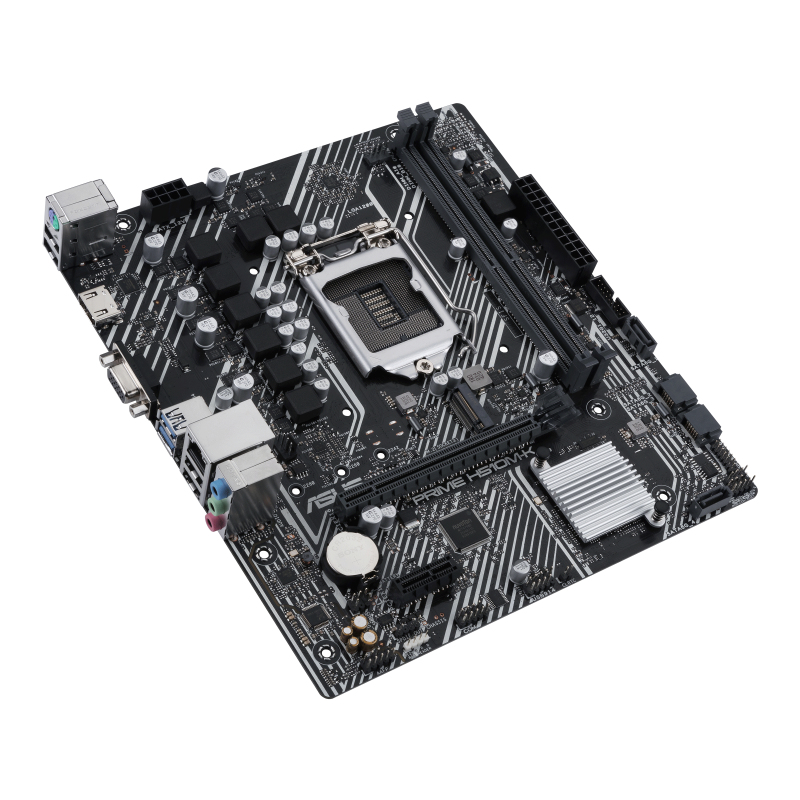

ASUS PRIME H510M-K Intel H510 LGA 1200 [Socket H5] micro ATX

90MB17N0-M0EAY0

(ASUS PRIME H510M-K - motherboard - micro ATX - LGA1200 Socke)

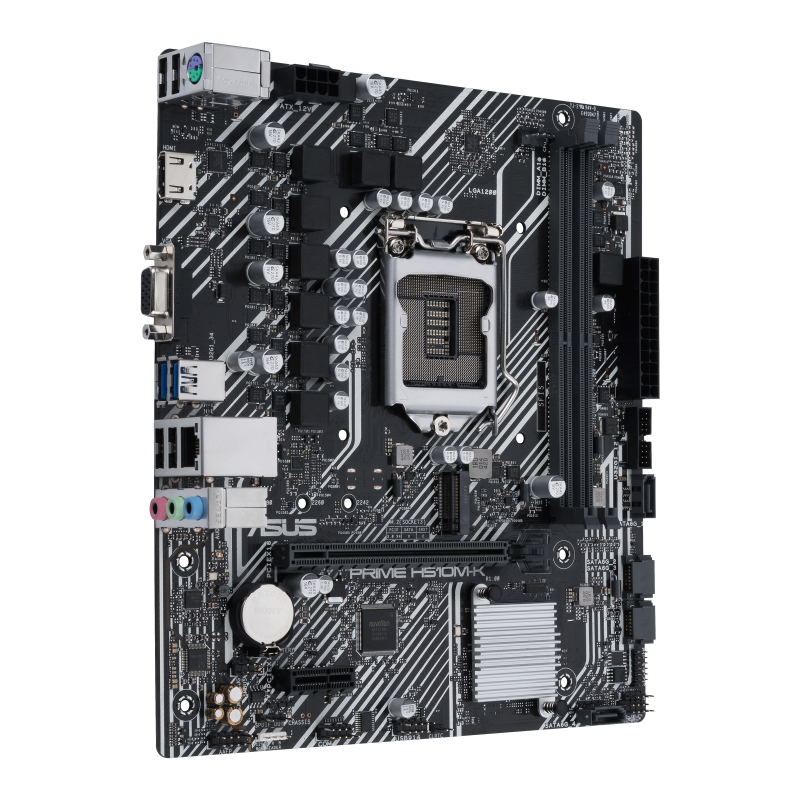

Product Image
Image accuracy is not guaranteed. Please do not rely on the image for your purchase.

View Product Demo

£78.63 | £94.36 inc.VAT

Overseas Customers with EU-VAT number do not pay VAT. - Verify it here

  • Quick Code: B45441682
  • MPN: 90MB17N0-M0EAY0
  • Manufacturer: ASUS
  • EAN code:
icon_cash_tag_large.jpg (130×105) Get £0.57 Cash Back if paying by Debit Card or Bank Transfer!

Learn more

Are you a System Builder? Assemble your PC and verify component compatability with our online PC Designer Tool!

Request More Info
Notify me when price drops
NOTE: The information below is provided for your convenience only and we cannot guarantee its accuracy. If necessary, please verify with us before purchasing.

Processor
Processor manufacturer Intel
Processor socket LGA 1200 (Socket H5)
Compatible processor series Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G
Supported processor sockets LGA 1200 (Socket H5)
Memory
Supported memory types DDR4-SDRAM
Number of memory slots 2
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility Non-ECC
Non-ECC
Supported memory clock speeds 2133,2400,2666,2800,2933,3200 MHz
Maximum internal memory 64 GB
Unbuffered memory
Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, PCI Express 3.0, SATA III
Number of storage drives supported 5
Graphics
Parallel processing technology support Not supported
Maximum resolution 3840 x 2160 pixels
Internal I/O
USB 2.0 connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Number of SATA III connectors 4
S/PDIF out connector
Front panel audio connector
ATX Power connector (24-pin)
CPU fan connector
Number of chassis fan connectors 1
EPS power connector (8-pin)
Number of COM connectors 1
TPM connector
12V power connector
RGB LED pin header

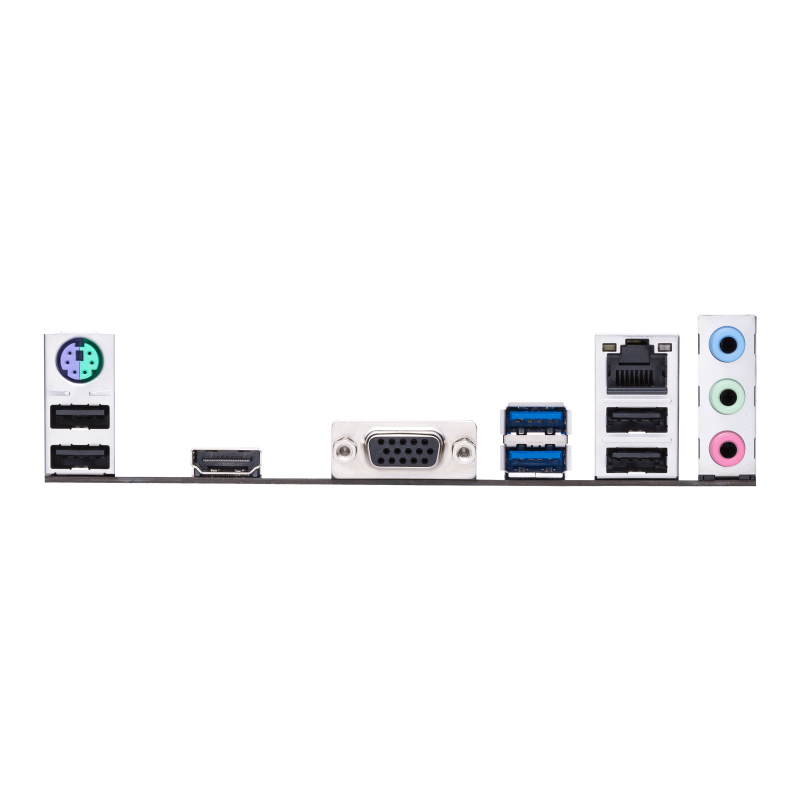

Rear panel I/O ports
USB 2.0 ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Ethernet LAN (RJ-45) ports 1
PS/2 ports quantity 1
VGA (D-Sub) ports quantity 1
HDMI ports quantity 1
HDMI version 1.4/2.0
Headphone outputs 3
Microphone in
USB connector type USB Type-A
Network
Ethernet LAN
Ethernet interface type Gigabit Ethernet
LAN controller Intel® I219-V
Wake-on-LAN ready
Wi-Fi
Features
Component for PC
Motherboard form factor micro ATX
Motherboard chipset family Intel
Motherboard chipset Intel H510
Audio chip Realtek ALC887 / Realtek ALC897
Audio output channels 7.1 channels
Windows operating systems supported Windows 10 x64
Expansion slots
PCI Express x1 (Gen 3.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
Number of M.2 (M) slots 1
BIOS
BIOS type UEFI AMI
BIOS memory size 128 Mbit
Clear CMOS jumper
Logistics data
Harmonized System (HS) code 84733020
Weight & dimensions
Width 226 mm
Depth 203 mm
Height 51 mm

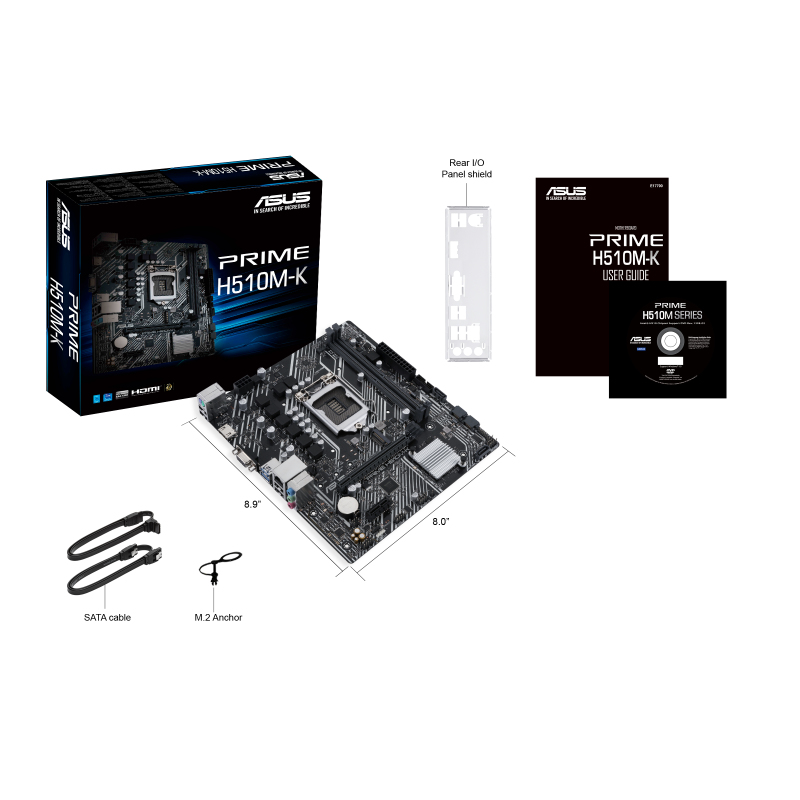

Packaging content
Cables included SATA
Drivers included
Other features
Weight 803 g
