ASUS Pro WS X570-ACE AMD X570 Socket AM4 ATX

90MB11M0-M0EAY0

(ASUS Pro WS X570-ACE AMD X570 Socket AM4 ATX)

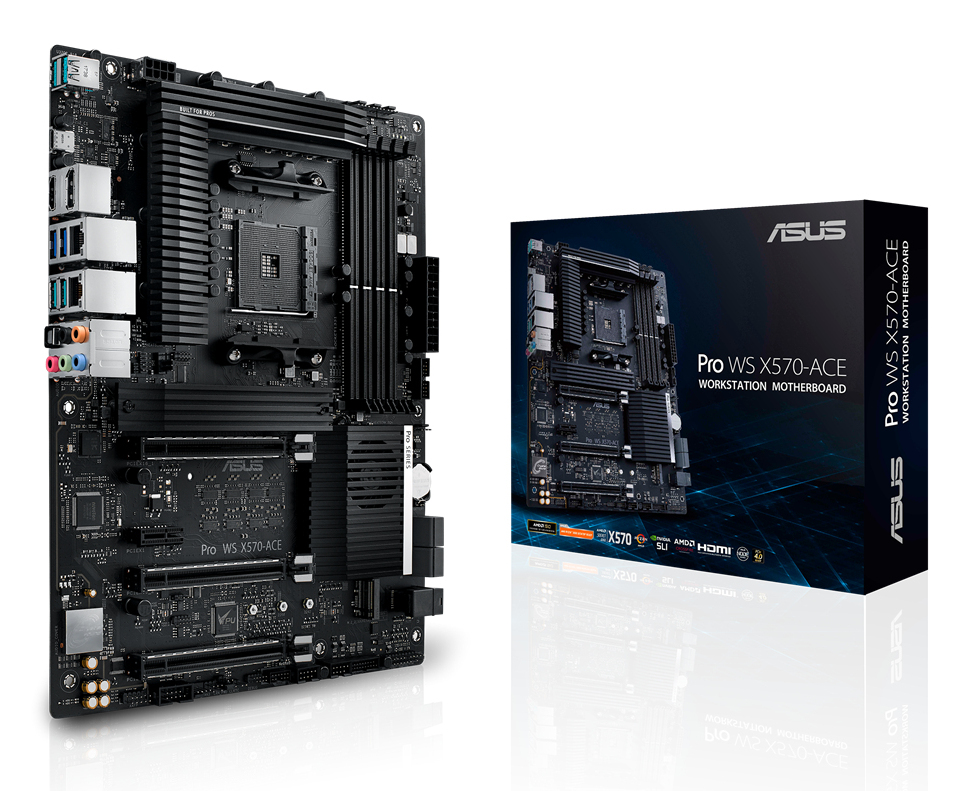

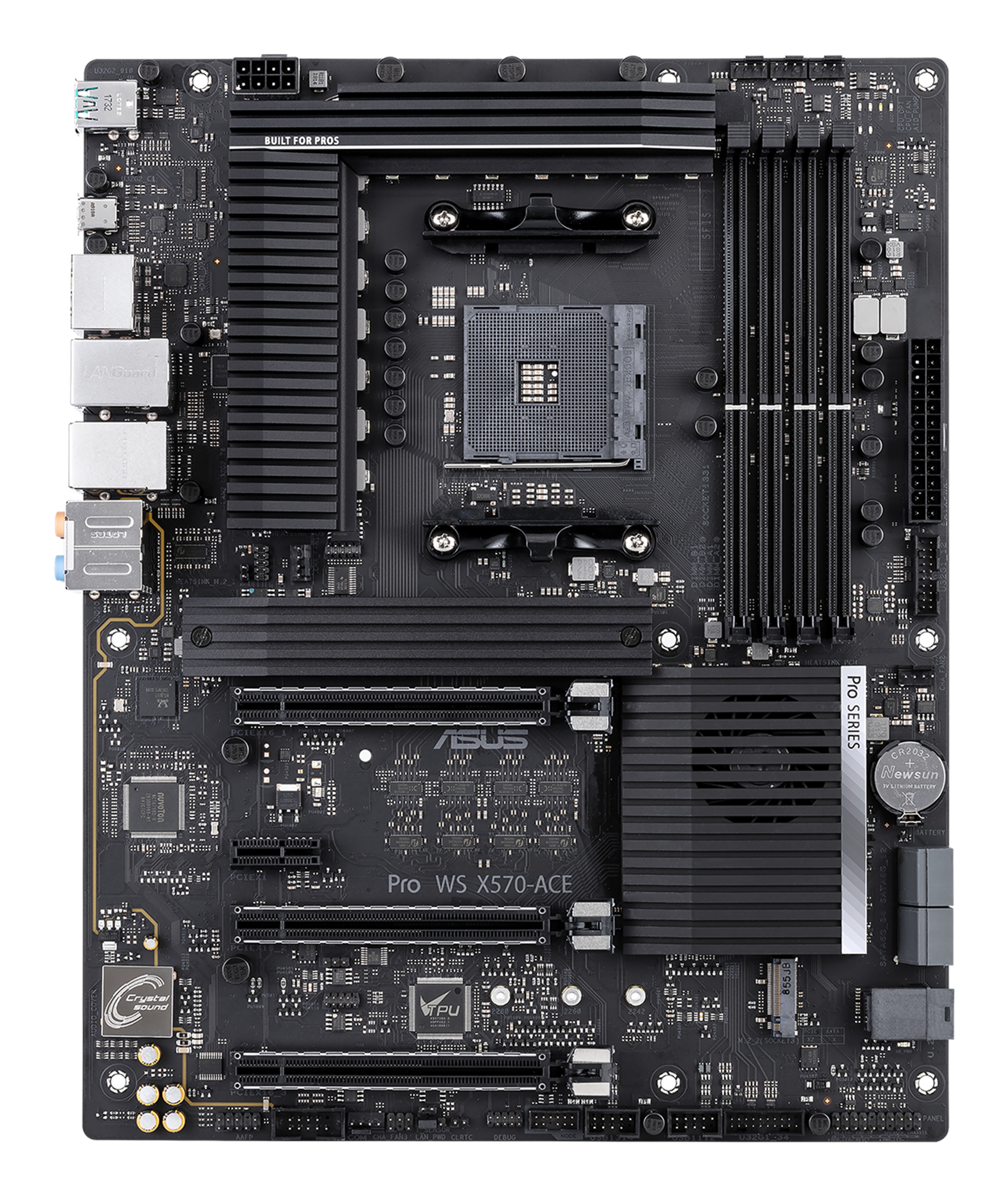

Product Image
Image accuracy is not guaranteed. Please do not rely on the image for your purchase.

View Product Demo

£295.52 | £354.62 inc.VAT

Overseas Customers with EU-VAT number do not pay VAT. - Verify it here

  • Quick Code: B43549698
  • MPN: 90MB11M0-M0EAY0
  • Manufacturer: ASUS
  • EAN code:
icon_cash_tag_large.jpg (130×105) Get £2.13 Cash Back if paying by Debit Card or Bank Transfer!

Learn more

Are you a System Builder? Assemble your PC and verify component compatability with our online PC Designer Tool!

Request More Info
Notify me when price drops
NOTE: The information below is provided for your convenience only and we cannot guarantee its accuracy. If necessary, please verify with us before purchasing.

Processor
Processor manufacturer AMD
Processor socket Socket AM4
Compatible processor series AMD Ryzen 2000 Series, AMD Ryzen 3000 Series
Memory
Supported memory types DDR4-SDRAM
Number of memory slots 4
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility ECC & Non-ECC
Maximum internal memory 128 GB
Unbuffered memory
Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, PCI Express 3.0, SATA III
Number of HDDs supported 6
RAID levels 0, 1, 10
Graphics
Parallel processing technology support 2-Way SLI, 3-Way CrossFireX
On-board graphics card
Number of displays supported 2
Internal I/O
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors 0
Number of SATA III connectors 4
Number of SATA II connectors 0
S/PDIF out connector
Front panel audio connector
Front panel connector
ATX Power connector (24-pin)
CPU fan connector
Number of chassis fan connectors 3
Peripheral (Molex) power connectors (4-pin) 1
EPS power connector (8-pin)

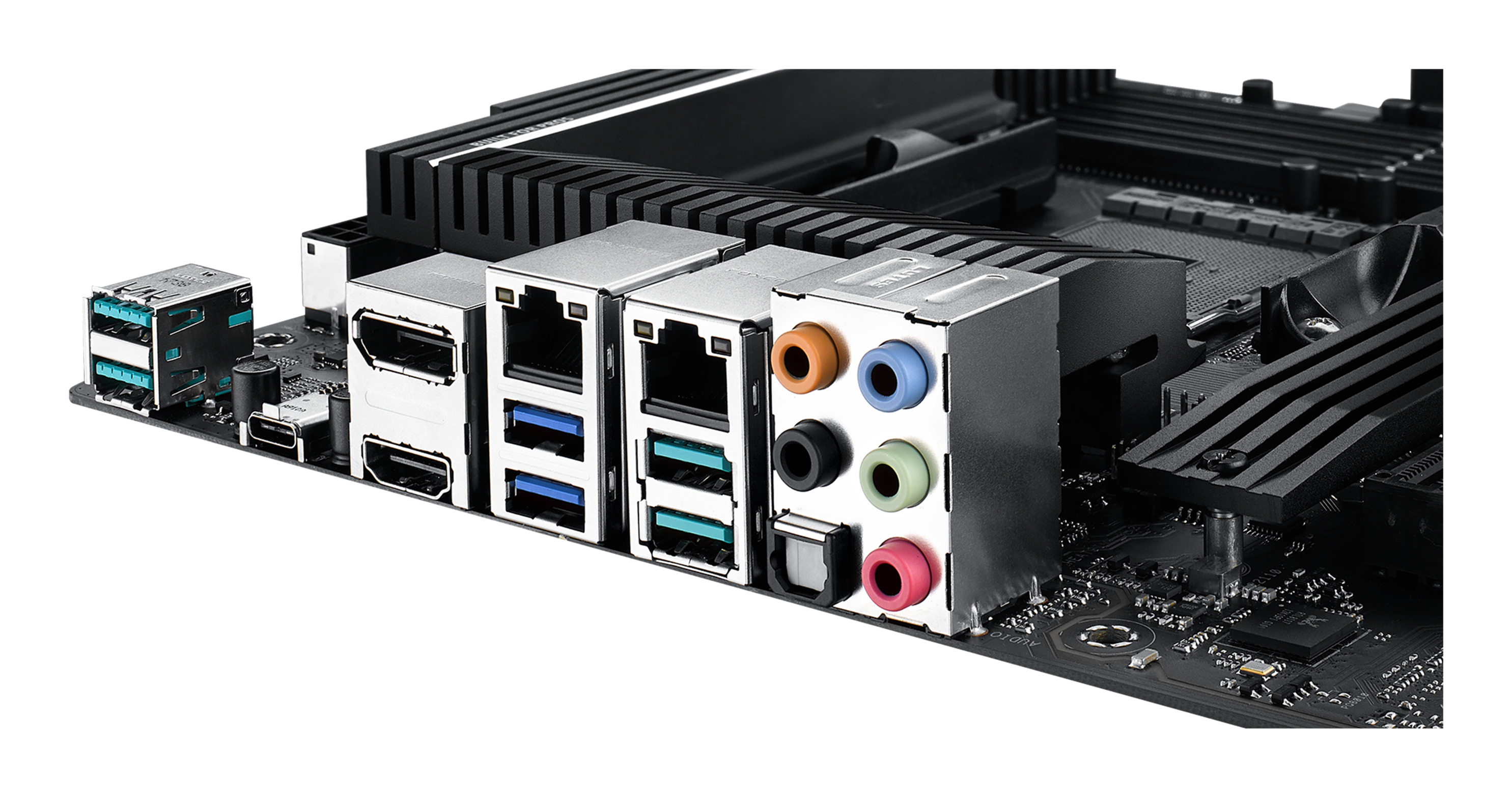

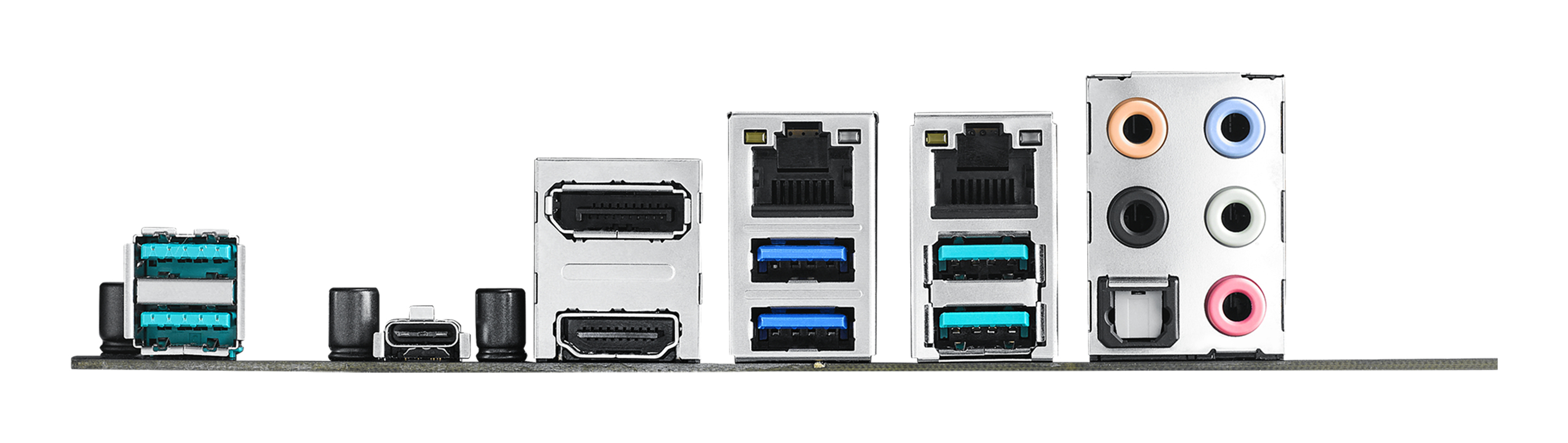

Rear panel I/O ports
USB 2.0 ports quantity 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
Ethernet LAN (RJ-45) ports 2
eSATA ports quantity 0
PS/2 ports quantity 0
VGA (D-Sub) ports quantity 0
Firewire (IEEE 1394) ports 0
HDMI ports quantity 1
HDMI version 1.4b
DVI-D ports quantity 0
DisplayPorts quantity 1
DisplayPort version 1.2
Headphone outputs 1
Microphone in
S/PDIF out port
Network
Ethernet LAN
Ethernet interface type Gigabit Ethernet
LAN controller Realtek RTL8117, Intel® I211-AT
Wi-Fi
Features
Component for PC
Motherboard form factor ATX
Motherboard chipset family AMD
Motherboard chipset AMD X570
Audio chip Realtek ALC S1200A
Audio output channels 8.0 channels
Cooling type Active
Power source type ATX
Number of mounting holes 9
Windows operating systems supported Windows 10
Expansion slots
PCI Express x1 slots 1
PCI Express x8 slots 1
PCI Express x16 slots 2
Number of M.2 (M) slots 1
BIOS
BIOS type UEFI AMI
BIOS memory size 256 Mbit
ACPI version 6.0
System Management BIOS (SMBIOS) version 3.2
Logistics data
Harmonized System (HS) code 84733020
Weight & dimensions
Width 305 mm
Depth 244 mm
Height 77 mm
Other features
S/PDIF in port
Analog audio output 1
Weight 1 kg
Number of Ultra M.2 (M) slots 1
